Case studies
Onshore Storage Tank Inspection ACE-A-E2
Oil and Gas
-
Project
Crude Oil Storage Tank A (T-1101A)
-
Type of facility
Oil Terminal Crude Oil Storage Tank
-
Industry
Oil and Gas
-
Safety
Eliminates confined space entry and the requirement for Emergency Response Team or Tank Sentry
-
Project efficiencies
x1 UAV team (Pilot), X2 days inspection vs X2 inspections / RA team, x1 Tank Sentry, ERT Team, 6-8 days inspection.
Scope of Work

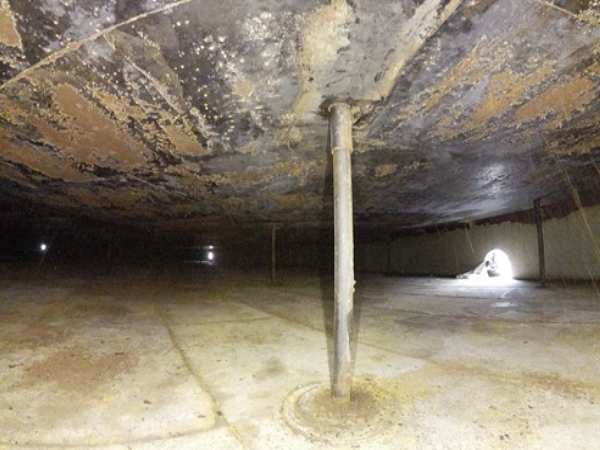

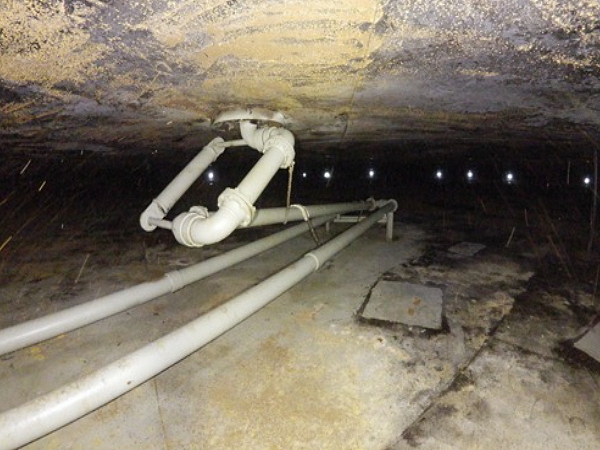

General Visual Inspection (GVI) and Close Visual Inspection (CVI) of internal crude oil storage tank within onshore oil and gas terminal. The purpose of the inspection is to ascertain the condition of the internal structure of the tank to aide decommissioning planning and enactment.
Solution

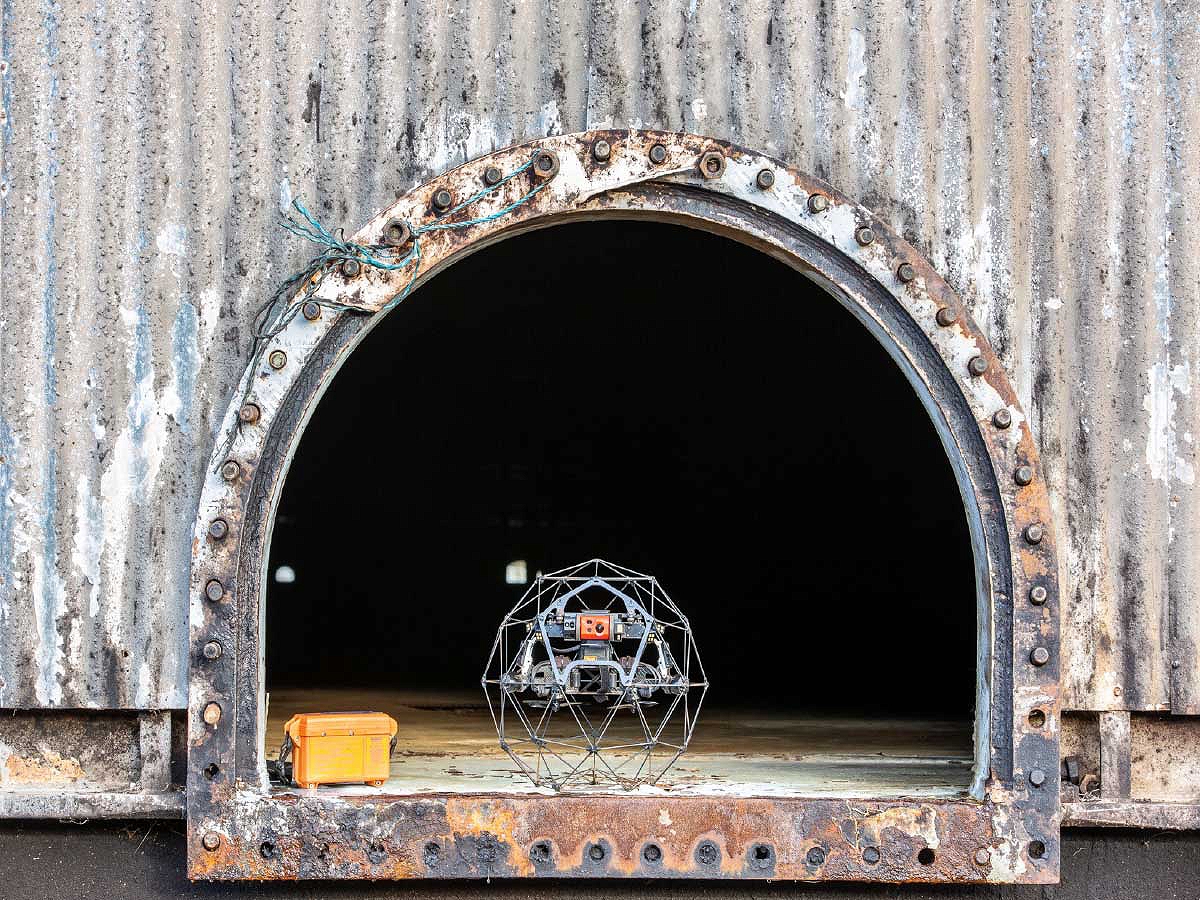

Air Control Entech deployed an ACE-A-E2 internal inspection UAV to conduct the inspection without the need for man entry. By flying from outside the tank, the team were able to eliminate man entry whilst producing valuable inspection data of the tank internals.
Full high-definition videography and photography data was captured and compiled into a report for the operator.
Results & Benefits
- Tanks emptied and isolations in place for minimal time.
- No confined space entry eliminating the need for x2 man entry team, Tank Sentry and Emergency Response Team.
- Greater visibility and enhanced maintenance planning potential for the client through provision of robust evidence on the physical state of internal tank structure and supports, i.e inner supports.
- Eliminated the requirement for multi-skilled teams reducing the risk and human factors, creating a safer and more efficient inspection.
- Project delivered on time with no disruption to ongoing plant activities.
Comparison
| Conventional Access | Air Control Entech |
|---|---|
 confined space entry & 1 Tank Sentry / Emergency Response Team |
1 Pilot |
 6-8 Days |
2 Days |
 Out of service tanks for longer periods |
Out of service tanks for minimal (short) periods |
 High Risk |
Low Risk |
 Hand held camera and imagery |
Safer operationally / Full 4k or FHD video and images |
